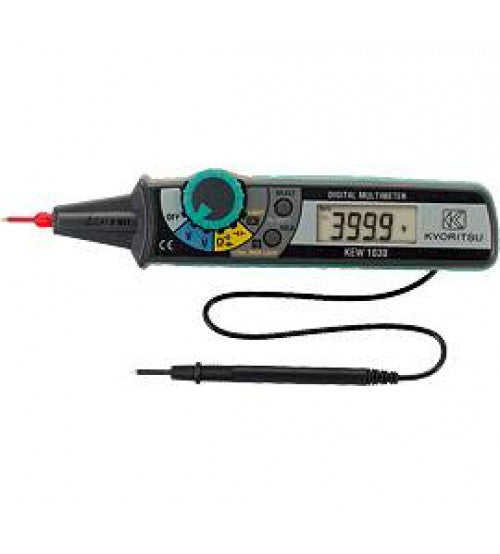

Digital Multi meters

Digital Multi meters

358.80 SR

اختر الكمية (يرجى التواصل معنا للتأكد من توفر المنتج)

+ -

تفاصيل المنتج

Compact in Size, Light in Weight and Simple in Use.

•

Double moulding provides comfortable and good feeling in hand.

•

Penlight illuminates brightly the point to be measured, even in dark place.

•

Backlight LCD is highly visible, even in darkness.

•

Unique wrapping mechanism for test lead in the rear side compartment.

•

Unique protection mechanism for the test prod for safety.

•

All ranges including Ohm range are protected against overload voltage of 600V.

	Long life LED light is of good use in dark place	Protection cover prevents unforeseen accident


	Wrapping mechanism for test lead in rear side compartment


* Length of test lead is adjustable in 3 steps, ie, 60cm, 40cm and 20cm.

AC V	4/40/400/600V (4 Range auto) \|±1.3%rdg\|±5dgt (4/40V) (50/60Hz) \|±1.6%rdg\|±5dgt (400/600V) (50/60Hz)
DC V	400m/4/40/400/600V (5 Range auto) \|±0.8%rdg\|±5dgt(400mV - 400V) \|±1.0%rdg\|±5dgt(600V)
Ω	400/4k/40k/400k/4M/40MΩ (6 Range auto) \|±1.0%rdg\|±5dgt (400Ω - 4MΩ) \|±2.5%rdg\|±5dgt (40MΩ)
Diode check	Test voltage approx. 0.3 - 1.5V
Continuity check	Buzzer sounds when resistance is 120Ω or less.
Capacitance	50n/500n/5µ/50µ/100µF (5 Range auto) \|±3.5%rdg\|±10dgt (50nF) \|±3.5%rdg\|±5dgt (500n - 50µF) \|±4.5%rdg\|±5dgt (100µF)
Frequency	5/50/500/5k/50k/200kHz \|±0.1%rdg\|±5dgt (Measurable input: 1.5Vrms or more)
Duty	0.1 - 99.9% \|±2.5%rdg\|±5dgt (Pulse width / Pulse cycle)
Data hold	The measured value can be hold by pressing Data hold button
Battery voltage warning	When the battery voltage drops to 2.4V\|±0.2V or less
Auto power-off	Built-in
Applicable standards	IEC 61010-1: 2001 CAT III 600V IEC 61010-031 IEC 61326-1
Power source	Button type battery LR44 (SR44)1.5V × 2
Dimensions	190(L) × 39(W) × 31(D)mm
Weight	Approx. 100g (including batteries)
Accessories	Carrying case, LR44 (1.5V) × 2, Instruction manual
