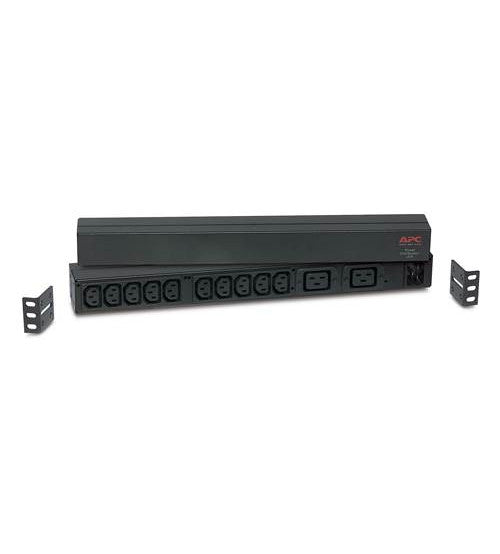

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

الرئيسية
/
الفئات
/
Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

1,656.00 SR

اختر الكمية (يرجى التواصل معنا للتأكد من توفر المنتج)

+ -

تفاصيل المنتج

AP9559 Features

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Basic Rack PDU Features & Benefits

Agility

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Total Cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Marketing Features

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Output

Nominal Output Voltage
120V , 208V , 230V
Overload Protection
No
Maximum Total Current Draw
16
Output Connections

(2) IEC 320 C19 (Battery Backup)

(10) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage
120V , 208V , 230V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Cord Length
2.5 meters
Acceptable Input Voltage
90-250 VAC
Number of Power Cords
1
Load Capacity
3680 VA
Maximum Input Current
16 A
Maximum Line Current
16 A
Rack Height
1 U

Physical

Maximum Height
44 mm , 4.4 CM
Maximum Width
447 mm , 44.7 CM
Maximum Depth
57 mm , 5.7 CM
Rack Height
1 U
Net Weight
0.98 KG
Shipping weight
2.36 KG
Shipping Height
165 mm , 16.5 CM
Shipping Width
483 mm , 48.3 CM
Shipping Depth
152 mm , 15.2 CM
Color
Black

Environmental

Operating Environment
0 - 45 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000 meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters

Conformance

Approvals
cUL Listed, CE, UL Listed, VDE, Victoria
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
