SMT1000I Features

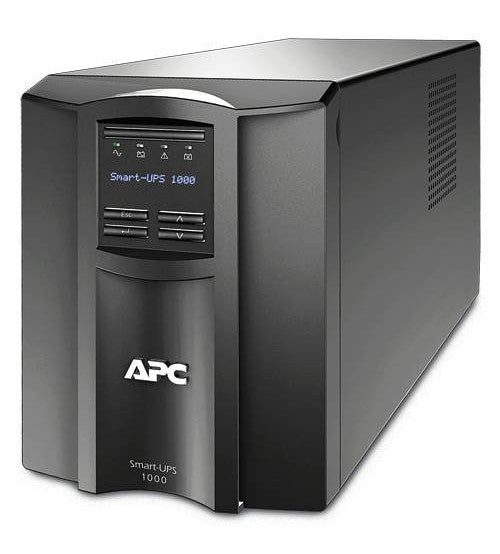

APC Smart-UPS 1000VA LCD 230V

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Energy meter
  Provides actual kilowatt hours of usage for energy conscious users.
• Green mode
  Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency
  Reduces utlility costs, generates less heat.
• Intuitive LCD interface
  Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Predictive replace battery date
  Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Pure sine wave output on battery
  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Single switched outlet group
  Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• SmartSlot
  Customize UPS capabilities with management cards.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Manageability

• Network manageable
  Provides remote power management of the UPS over the network.
• LED status indicators
  Quickly understand unit and power status with visual indicators.
• Audible alarms
  Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Serial connectivity
  Provides management of the UPS via a serial port.
• USB connectivity
  Provides management of the UPS via a USB port (not available on all models).

Availability

• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Boost and Trim Automatic Voltage Regulation (AVR)
  Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.

Adaptability

• Adjustable voltage-transfer points
  Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Adjustable voltage sensitivity
  Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability

• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Predictive failure notification
  Provides early-warning fault analysis ensuring proactive component replacement.
• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Resettable circuit breakers
  Enables a quick recovery from overload events.
• User-replaceable batteries
  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
•


  Output

  • Output power capacity
    700 Watts / 1.0 kVA
  • Max Configurable Power (Watts)
    700 Watts / 1.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Other Output Voltages
    220, 240
  • Topology
    Line Interactive
  • Waveform type
    Sine wave

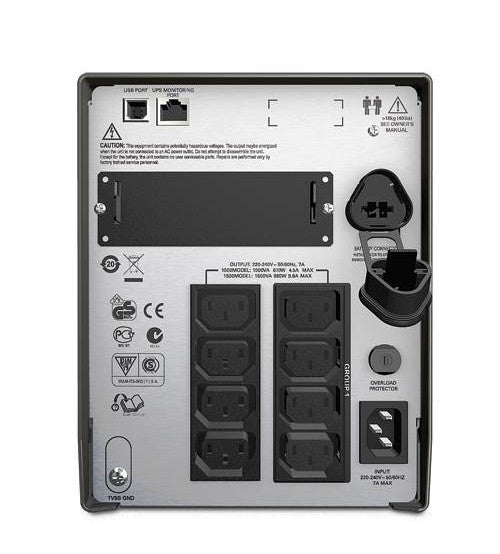

  • Output Connections
    (8) IEC 320 C13 (Battery Backup)

  Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14
  • Input voltage range for main operations
    160 - 286 V
  • Input voltage adjustable range for mains operation
    151 - 302 V
  • Input Breaker Capacity
    0 A
  • Other Input Voltages
    220, 240

  Battery

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    3 hour(s)
  • Replacement Battery
    RBC6
  • RBC Quantity
    1
  • Battery Volt-Amp-Hour Capacity
    264
  • Runtime
    View Runtime Graph
    View Runtime Chart
  • Efficiency
    View Efficiency Graph

  Communication

  • Interface Port(s)
    DB-9 RS-232, SmartSlot, USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO)
    Optional
  • Available SmartSlot™ Interface Quantity
    1

  Runtime

  • Output power capacity
    700 Watts / 1.0 kVA

  Surge

  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

  Physical

  • Maximum Height
    219 mm , 21.9 CM
  • Maximum Width
    171 mm , 17.1 CM
  • Maximum Depth
    439 mm , 43.9 CM
  • Net Weight
    18.86 KG
  • Shipping weight
    22.77 KG
  • Shipping Height
    376 mm , 37.6 CM
  • Shipping Width
    328 mm , 32.8 CM
  • Shipping Depth
    595 mm , 59.5 CM
  • Color
    Black
  • Units per Pallet
    12.0

  Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000 meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000 meters
  • Audible noise at 1 meter from surface of unit
    41.0 dBA
  • Online thermal dissipation
    100.0 BTU/hr

  Conformance

  • Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, VDE
  • Standard warranty
    3 years repair or replace (excluding battery) and 2 year for battery

  Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
<
