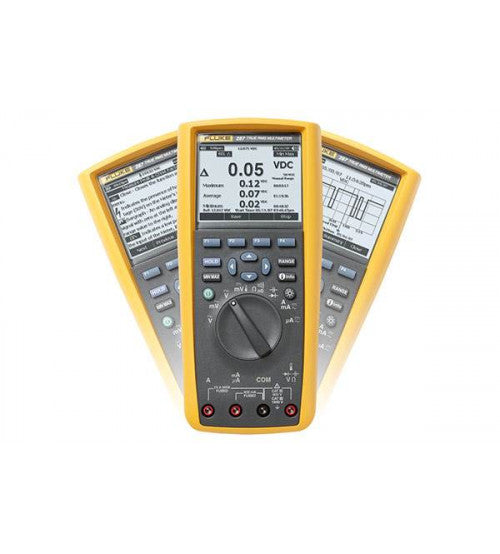

Fluke 287 True-RMS Electronics Logging Multimeter
The Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.
Specifications:
|
Function |
||
|
DC volts |
Range / resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
|
Basic accuracy |
0.025% |
|
|
AC volts |
Range / resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
|
Basic accuracy |
0.4% (True-RMS) |
|
|
DC current |
Range / resolution |
500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
|
Basic accuracy |
0.05% |
|
|
AC current |
Range / resolution |
500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
|
Basic accuracy |
0.6% (True-RMS) |
|
|
Temperature (excluding probe) |
Range / resolution |
-200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
|
Basic accuracy |
1.0% |
|
|
Resistance |
Range / resolution |
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
|
Basic accuracy |
0.05% |
|
|
Capacitance |
Range / resolution |
1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF |
|
Basic accuracy |
1.0% |
|
|
Frequency |
Range / resolution |
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
|
Basic accuracy |
0.005% |
|
|
Connectivity |
Optional infrared connector via Fluke ir3000 FC |
|
|
General Specifications |
||
|
Maximum voltage between any terminal and earth ground |
1000 V |
|
|
Battery type |
6 AA alkaline batteries, NEDA 15A IECLR6 |
|
|
Battery life |
100 hours minimum, 200 hours in logging mode |
|
|
Temperature |
Operating |
-20°C to 55°C |
|
Storage |
-40°C to 60°C |
|
|
Relative humidity |
0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) |
|
|
Electromagnetic compatibility |
EMC EN61326–1 |
|
|
Vibration |
Random vibration per MIL-PRF-28800F Class 2 |
|
|
Shock |
1 meter drop per IEC/EN 61010–1 3rd Edition |
|
|
Size (H x W x L) |
22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) |
|
|
Weight |
870.9 g (28 oz) |
|
|
Multiple on screen displays |
Yes |
|
|
|
||
