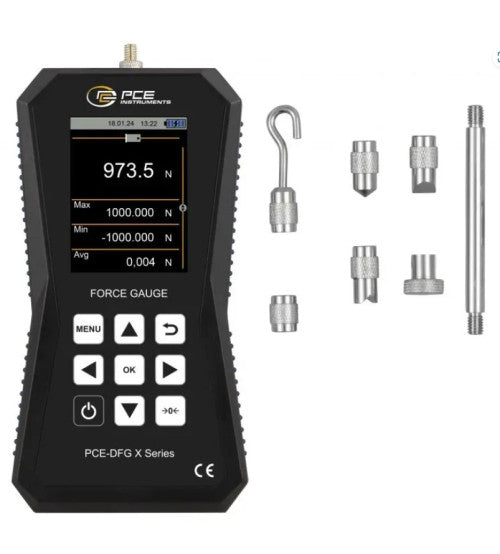

جهاز قياس قوة شد وضغط PCE Instruments PCE-DFG 1000 X

جهاز قياس قوة شد وضغط PCE Instruments PCE-DFG 1000 X مخصص لـقياس القوى ضمن قدرة الجهاز.

بيانات المنتج واستخدامه

• نوع المنتج: جهاز قياس قوة شد وضغط.
• العلامة الواردة في الملف: PCE Instruments.
• الموديل أو المرجع: PCE-DFG 1000 X.
• الاستخدام: قياس القوى ضمن قدرة الجهاز.

إرشادات الاختيار

طابق الموديل والمقاس وحدود التشغيل ونوع التوصيل مع احتياجك. لا يُفترض توافق المنتج مع أجهزة أو ملحقات غير مذكورة في البيانات الأصلية.

التفاصيل الأصلية ومرجع المواصفات

PCE-DFG 1000 X: High Accurate Force Gauge (1000N)

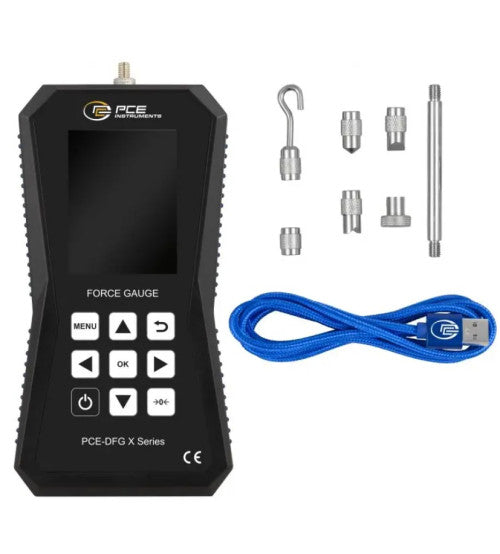

DESCRIPTION The force measuring device can be used to record both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The force gauge has an internal measuring cell and can measure forces up to 1000 N. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The force tester has a USB-C interface that can be used to read the measurement data into the PC software. The force tester is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test benches are available for adapting the force transducer. HIGHLIGHTS - Measuring range: 0 ... 1000 N - Measuring rate: 1 ... 7200 Hz - Accuracy: ±0.05 % F.S. - Graphic display - USB-C interface - PC software - 32 GB memory for 30 mio. measuring points - Measuring cells can be easily changed - Various alarm modes - Bar chart for displaying the measured value in the measuring range - Calibration reminder SPECIFICATION Force Measuring range 0 ... 1000 N Resolution 0.5 N Accuracy ± 0.05 % F.S. General technical data Units kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm Display type LCD with illumination Display size 2.8 inch Adjustable measurement rate 1 ... 7200 Hz Memory medium Internal memory Storage capacity 32 GB Memory interval of 1 Hz Memory interval up to 7200 Hz Operating time 13 h Automatic switch-off adjustable 1 ... 15 min. Automatic switch-off can be deactivated Yes Alarm Optical, acoustic Alarm modes Inside, Outside, Crack, Switch off Menu language German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese Protection class (device) IP52 Power supply USB 5 V DC, 500 mA Weight 255 g Dimensions (L x W x H) 165 x 85 x 32 mm Operating conditions -20 ... 65 °C , 10 ... 95 % r.H Storage conditions -20 ... 65 °C , 10 ... 65 % r.H
