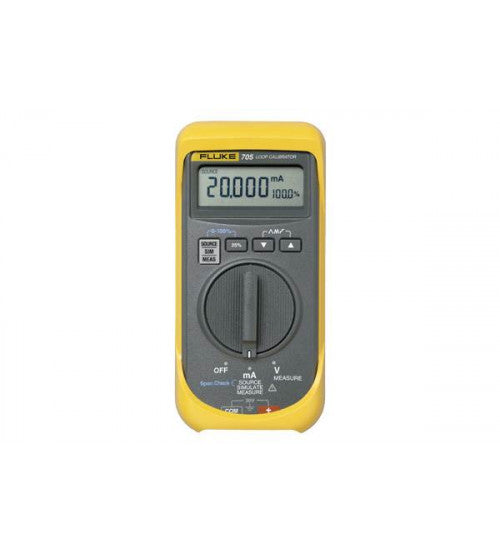

Fluke 705 Loop Calibrator

Product description

The Fluke 705 loop calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features:

mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Compact case with separate protective holster
Three year warranty

Low cost calibrator muscle.

For a powerful loop calibrator at a very affordable price, choose the Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration, maintenance and repair offers:

A large display and simple, pushbutton interface for ease of use.
Simultaneous mA and % readout for quick, easy interpretation of readings.
mA accuracy of 0.02%
Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
"Span Check" for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
Single 9V battery that is easily changed.
0 - 20 mA or 4 - 20 mA default start up modes.

Specifications
Current measurement	Range	0 to 24 mA
	Resolution	0.001 mA
	Accuracy	0.02% Rdg + 2 LSD
Current sourcing	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Drive capability	1000 Ω @ 24 mA
Current simulation	Range	0 to 20 mA or 4 to 20 mA
	Accuracy	0.025% Rdg + 2 LSD
	Ext. loop voltage requirement	12-30 V
Loop power	While measuring mA, 24 V
Voltage measurement	Range	0 to 28 V DC
	Resolution	1 mV
	Accuracy	0.025% Rdg + 2 LSD
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient	-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C
Safety Specifications
Safety	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage	30 V
Mechanical and General Specifications
Size	152 x 70 x 41 mm
Weight	340 g
Batteries	One 9 V battery
Warranty	Three years
Shock and vibration	per MIL-T-28800 for a Class 2 Instrument
Display current and % of span	Yes
Auto step, auto ramp	Yes
Span check	Yes

Loop Calibrators Data Sheet

Download
