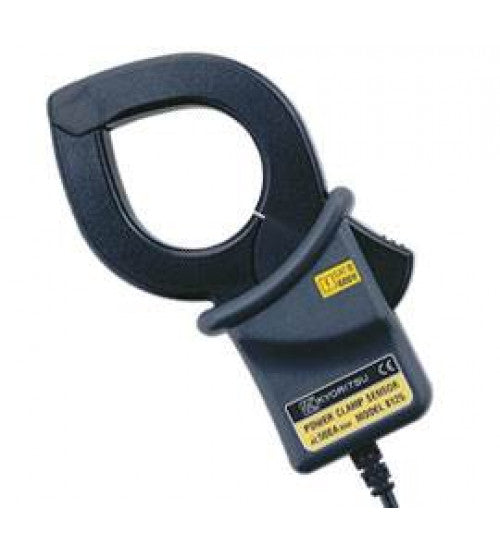

Load current clamp sensor

Product description

Applicable model

*	When you use the sensors with KEW5010/5020, please check the"Applicable model list" to check if your KEW5010/5020 can be used with the sensors.

Conductor size	Φ40
Rated current	AC 500A
Output voltage	AC 500mV/500A (AC 1mV/A)
Accuracy	\|±0.5%rdg±0.1mV (50/60Hz) \|±1.0%rdg±0.2mV (40Hz - 1kHz)
Phase Shift	within ±1.0º (45 - 65Hz)
Withstand voltage	AC 5350V for 5 seconds
Cable length	Approx. 3m
Output connector	MINI DIN 6pin
Operating temperature ranges	0 - 50ºC, less than 85% RH (without condensation)
Output impedance	Approx. 2Ω
Applicable standards	IEC 61010-1:2001, IEC 61010-2-032:2002 CAT III 600V pollution degree 2
Dimensions	128(L) x 81(W) x 36(D) mm
Weight	Approx. 260g
Accessories	9095 (Portable case), Instruction manual, Cable marker
Option	7146 (Banana Φ4 adjuster plug) 7185 (Extension Cable)
