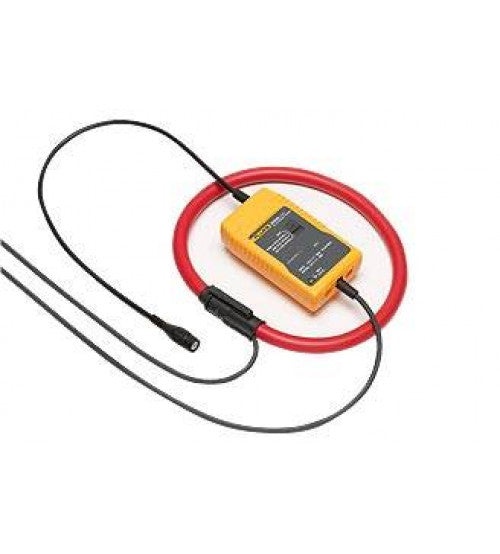

مسبار قياس تيار FLUKE i6000sFlex-24

Home
/
categories
/
مسبار قياس تيار FLUKE i6000sFlex-24

4,885.20 SR

Quantity (Please contact us to confirm product availability)

+ -

Product description

مسبار قياس تيار FLUKE i6000sFlex-24

مسبار قياس تيار FLUKE i6000sFlex-24 مخصص لـتوصيل أجهزة القياس المتوافقة لفحص التيار الكهربائي. راجع المواصفات والتوافق لتحديد ملاءمته لمهمتك قبل الشراء.

الهوية والاستخدام

نوع المنتج: مسبار قياس تيار.
مرجع الاختيار: FLUKE i6000sFlex-24.
الاستخدام: توصيل أجهزة القياس المتوافقة لفحص التيار الكهربائي.

كيف تختار المنتج المناسب؟

اعتمد الموديل والمقاس ونوع التوصيل أو الملحقات المتوافقة، ولا تعتمد على تشابه الاسم وحده.

للمشترين في السعودية

قارن FLUKE i6000sFlex-24 لدى شركة الصندوق الآمن SafeBox وفق احتياجك الفني والمواصفات الموضحة، واستخدم رقم الموديل عند طلب مطابقة المنتج.

التفاصيل الفنية الأصلية باللغة الإنجليزية

The i6000sflex is an AC current probe utilising the Rogowski principle. It can be used to measure currents up to 6000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Electrical Characteristics
Current ranges	60 A / 600 A / 6000 A AC rms
Output sensitivity (AC coupled)	50 mV /5 mV / 0.5 mV per A
Load impedance	100 kOhm minimum
Accuracy (at +25°C)	±1% of range (45 – 65 Hz)
Linearity (10% to 100% of range)	±0.2% of reading
Noise	8 mV AC rms (60 A)
Noise	2 mV AC rms (600/6000 A)
Frequency range	10 Hz to 50 kHz (-3 dB)
Phase error	< ±1° (45 – 65 Hz)
Phase error	±10° (at 20 kHz)
Position sensitivity (with cable > 25 mm from the coupling)	±2% of range
External field (with cable > 200 mm from the head)	±1% of range
Power supply	2 x AA MN 1500 LR6 alkaline
Power supply	400 Hours, low battery indicator or dedicated ext power supply
Temperature coefficient	±0.08% of reading per ° C
Working voltage (see Safety Standards section)	600 V AC rms or DC
General Characteristics
Head cable length	610 mm (24 in) I6000s Flex-24
Head cable length
Head cable diameter	14.3 mm
Head bend radius	38.1 mm
Cable length (head to electronics)	2 m
Output connection	0.5 m cable terminated with safety BNC connector
Output connection	Supplied with 4 mm safety plug adaptor
Operating temperature range	-20 to +90°C (head)
Operating temperature range	-20 to +85°C (electronics)
Storage temperature range	-40 to +105°C (head)
Storage temperature range	-20 to +85°C (electronics)
Operating humidity	15% to 85% (non condensing)
Weight	180 g (head), 190 g (electronics)
Safety Standards
BS EN 61010	1: 2001
BS EN 61010	2-032: 2002
BS EN 61010	031: 2002
600 V rms, Category III, Pollution degree 2
EMC standards	BS EN 61326: 1998 +A1, A2, and A3
Use of the probe on uninsulated conductors is limited to 600 V AC rms or DC and frequencies below 1 kHz
